Upgraded 8K IP Camera Tester with PoE, WANLUTECH CCTV Test 8MP CVI TVI AHD Analog 8K IP Camera Test 5.4inch Touchscreen RJ45 Cable TDR Tester RS485 HDMI in VGA in (IPC-5100 Plus)
4.6 (128 items)
Limited Time SaleUS$118.54 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211730675 | Release Date | 2026/04/04 | List Price | US$79.02 | Model Number | 211730675 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Upgraded IP Analog Camera Tester ] Support to test max 8K 32MP 4K 12MP IP Cameras. 5.4'' IPS touch screen, Blind IP Discovery/Quick ONVF/IPC test /RTSP play /Client APK.Auto view the video, create testing report.Support batch activate Hik and DH cameras and modify IP address, modify password etc. Self-defined modify channel name. Supports CVBS analog camera test.1 channel BNC input, NTSC/PAL (Auto adapt); PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols
- [ TVI CVI AHD Camera Tester ] WANLUTECH CCTV monitor tester supports 8MP TVI / CVI / AHD camera testing and UTC control, and supports calling OSD menu. Auto HD -recognize the resolution and image display of Analog and HD cameras. Support coaxial PTZ and call OSD menu. Support CVBS and 8MP TVI/CVI/AHD cameras. Select relative function on the right side toolbar to operate, functions including ''Photos'', ''Snapshot'', ''Record'', ''Playback'', ''PTZ'', ''Set''. Multiple preview APP supports synchronized preview of multiple cameras, playback of the camera 2 to 3 frames per second, up to 32 simultaneous preview
- [ Multifunctional Camera Tester ] 1 channel HDMI input, support 4K 30FPS;1 channel VGA input. Support 48V PoE power output, max power 30W. Built-in 7.4V Li-ion battery, 3350mAh. DC12V/3A power output, supply temporarily power for the camera. Network tools: Ping, IP scan, Port Flash ,DHCP server, Trace Route, Switch Port Detection using LLDP or CDP protocols. Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot
- [ Cable Test ] Support test UTP cable connection status and display on the screen. RJ45 cable TDR testing: test cable pair status, length, attenuation, reflectivity, impedance, skew
- [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
| Color | blue |
|---|---|
| Model | IPC-5100 Plus |
| Brand Name | WANLUTECH |
| Style Name | Compact |
| Item Weight | 1.12 Kilograms |
| Manufacturer | WANLUTECH |
| Power Source | Battery Powered |
| Measurement Type | Cable Length |
| Specification Met | CE, ETL, RoHS |

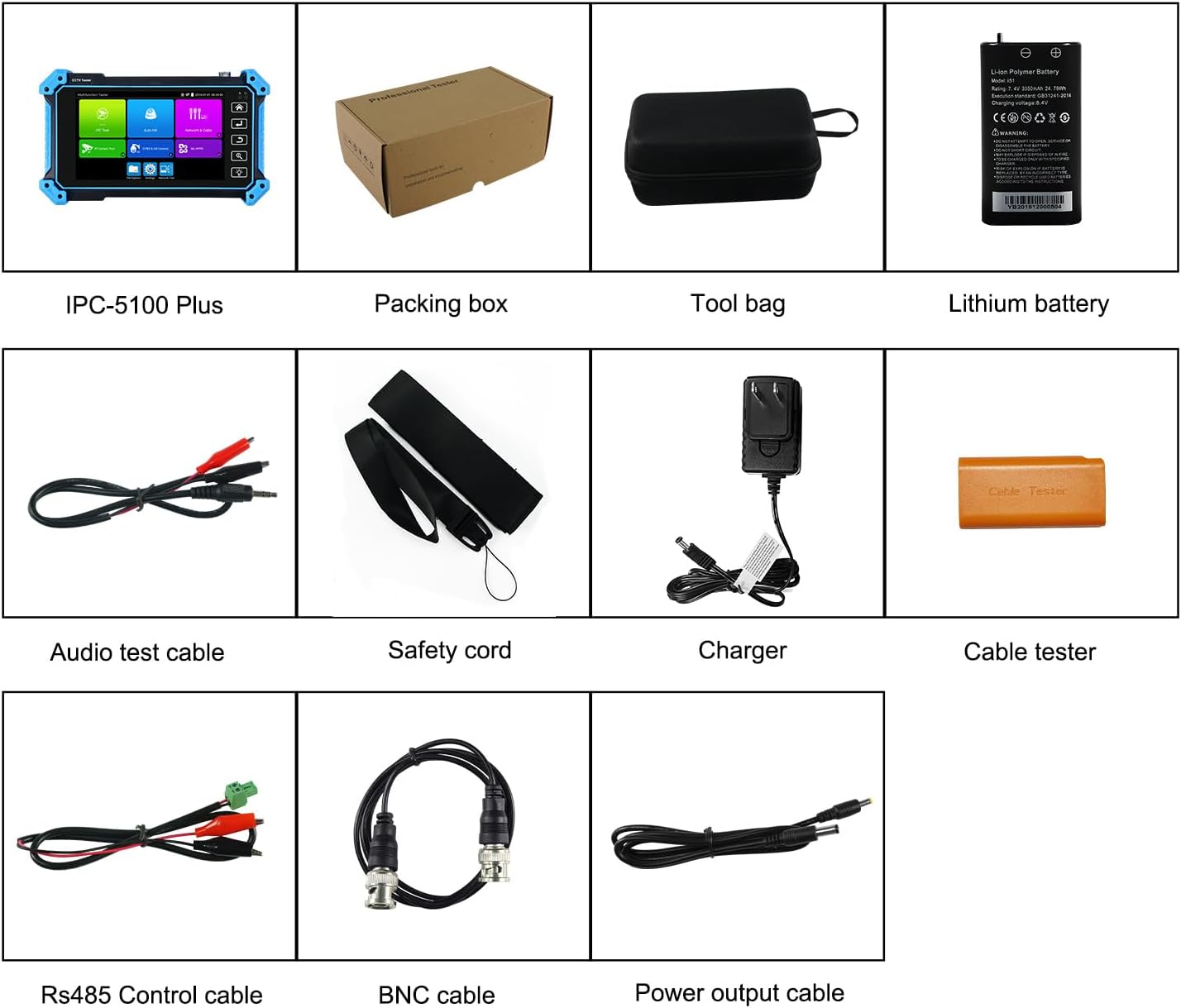

| Included Components | CCTV tester |
| Warranty Description | 1 year warranty from date of purchase |
| Minimum Operating Voltage | 48 Volts (DC) |
