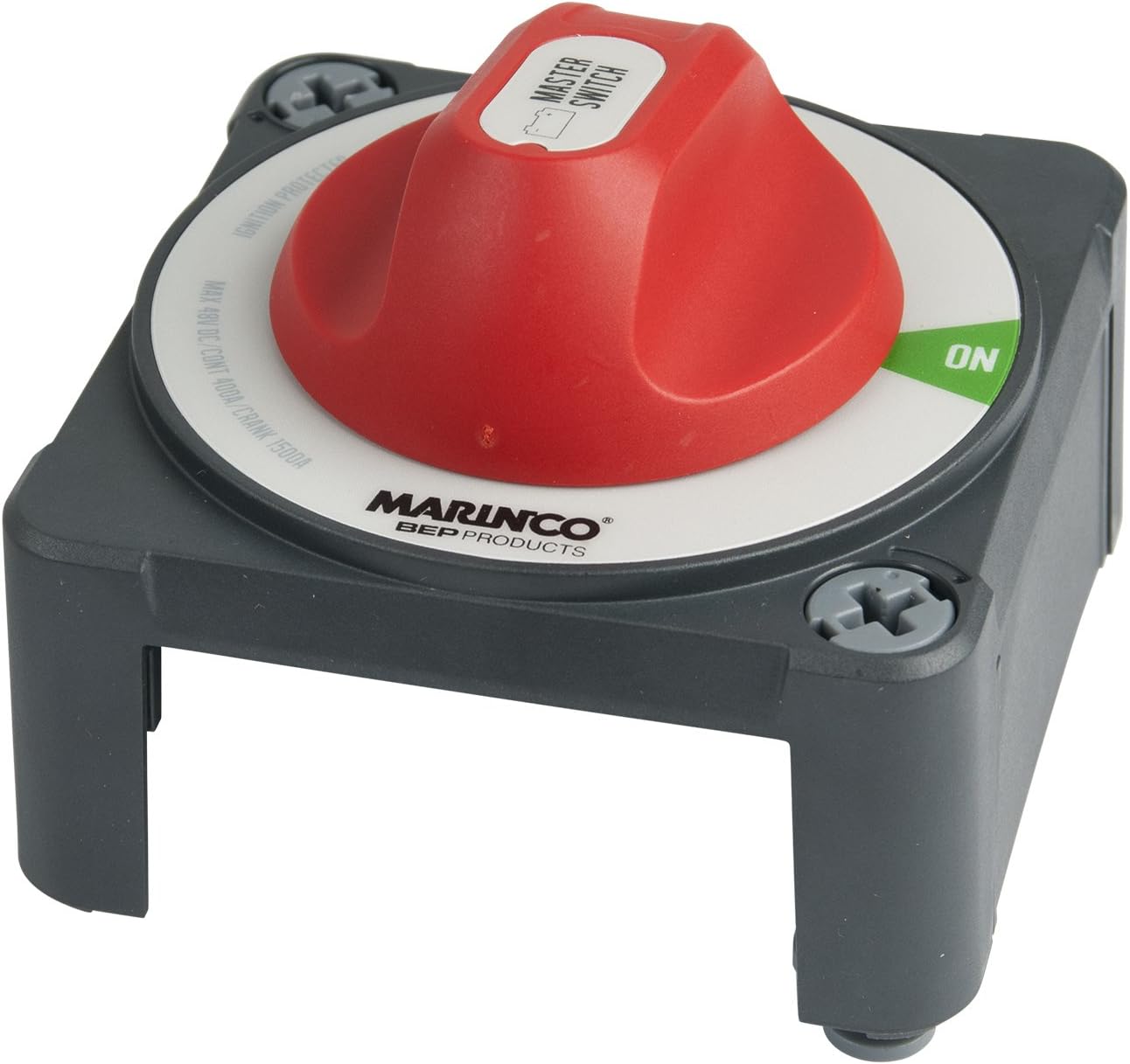

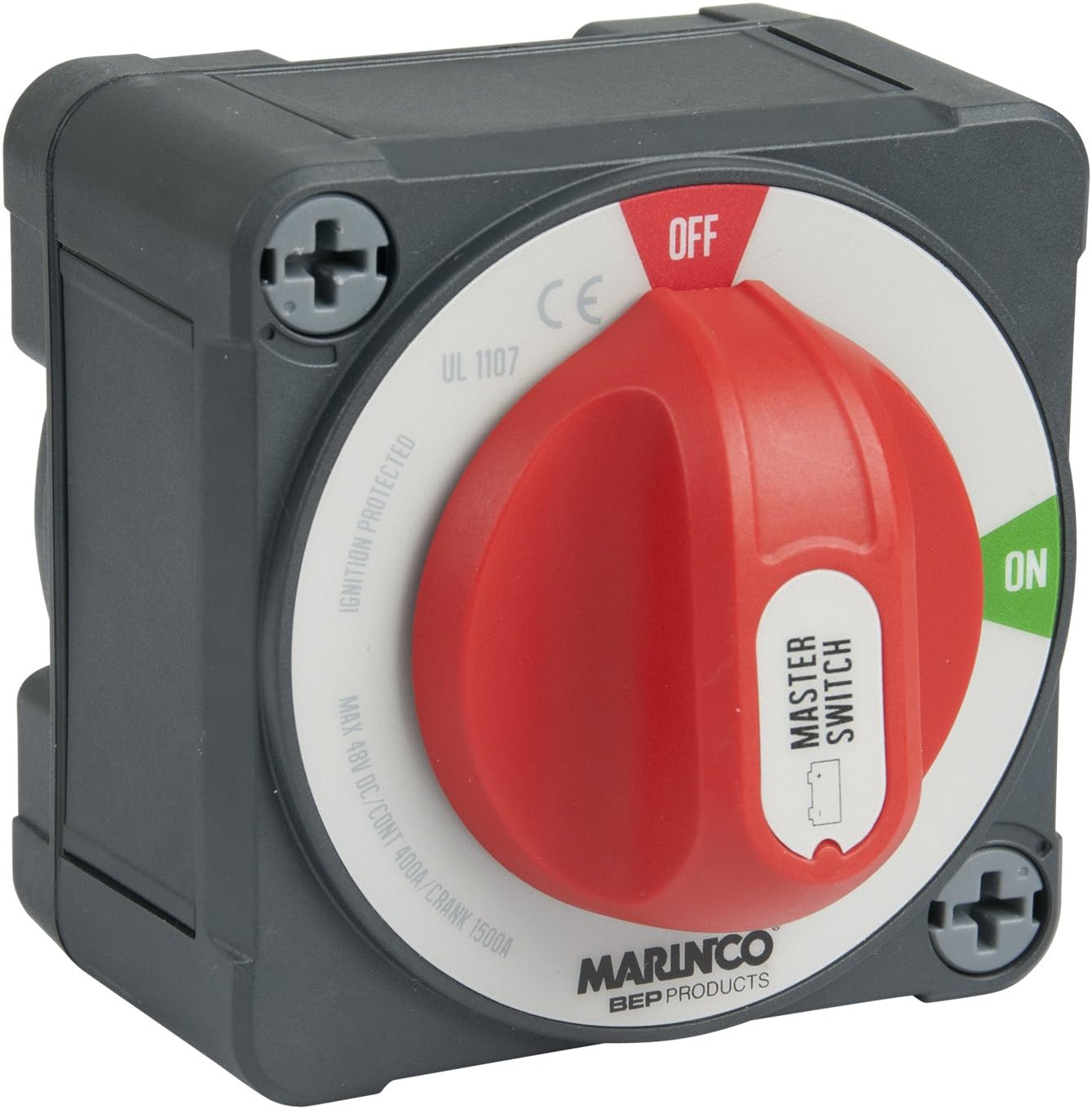

BEP 770-DP-EZ MC10 Pro Installer 400A EZ-Mount Double Pole Battery Switch
4.7 (20 items)
Limited Time SaleUS$48.85 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210363429 | Release Date | 2026/04/02 | List Price | US$32.57 | Model Number | 210363429 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
An addition to our multi award winning Pro Installer EZ Mount range, this battery switch provides Double Pole On/Off functionality so that both positive and negative battery terminals can be isolated. Most commonly used on metal hulled craft, full isolation ensures there is no risk of stray currents that may cause galvanic corrosion, and also guarantees optimum safety during servicing or mishap, for example with mining equipment. As easy as 1, 2, 3, these revolutionary battery switches allow you to wire from the front for the easiest surface mounting. With their shared interconnection height, EZ-Mount battery switches "cluster" directly with the Pro Installer Busbar Range, resulting in the fastest, most compact installations. Optimized cable access makes installation a breeze.
- Tested to UL1107 ignition protection, CE

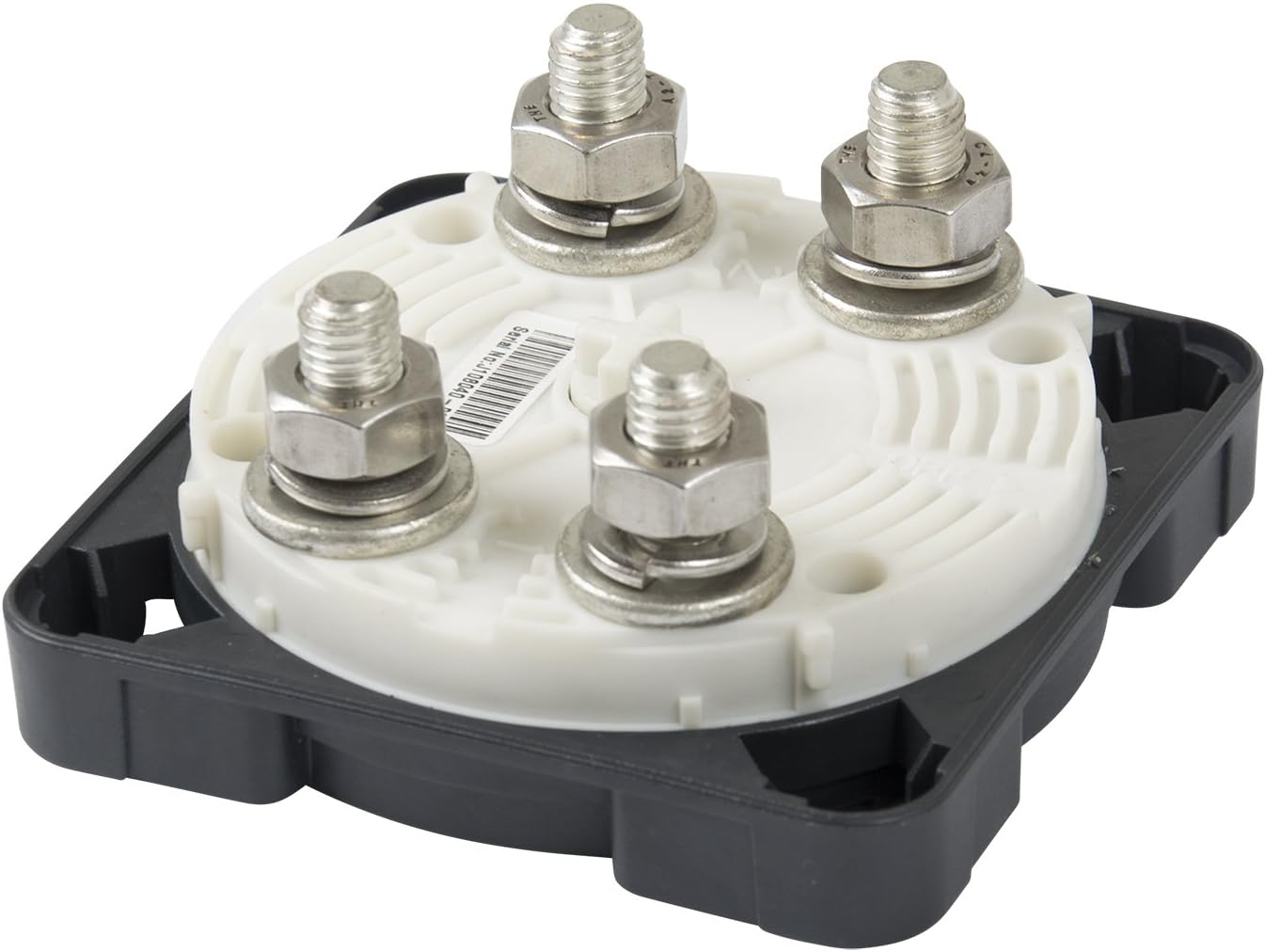

- Tinned copper 10 mm (3/8 in) studs
- Stainless steel washers and nuts
- Fiber reinforced plastics
- 400A Continuous / 600A 5 minutes Intermittent / 1500A 10 seconds Cranking (cable size to achieve ratings 120mm, 4/0, smaller cable size will reduce the Amp rating). Waterproof to IP67
| UPC | 843687008569 |
|---|---|
| Color | No Color |
| Model | 770-DP-EZ |
| Wattage | 19200 watts |
| Terminal | Marine |
| Brand Name | BEP |
| Unit Count | 1.0 Count |
| Item Weight | 1.4 Pounds |
| Switch Type | Metal |
| Circuit Type | parallel |
| Contact Type | Normally Open |
| Manufacturer | Marinco Electrical Group |
| Actuator Type | Rotary |
| Material Type | Plastic |
| Mounting Type | Surface Mount |
| Connector Type | Screw Terminal |
| Control Method | Touch |
| Current Rating | 400 Amps |
| Item Type Name | Pro Installer 400A EZ-Mount Double Pole Battery Switch - MC10 |
| Operation Mode | Off |
| Item Dimensions | 8 x 7 x 4 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 48 Volts |
| Specification Met | Ip67 |
| Included Components | battery switch |
| Number of Positions | 2 |
| Warranty Description | Warranty |
| Connectivity Protocol | X-10 |
| Lower Temperature Rating | 50 Degrees Celsius |
| Upper Temperature Rating | 105 Degrees Celsius |
| International Protection Rating | IP67 |
| Global Trade Identification Number | 00843687008569 |
